The paper S sleeve wrapper is a compact machine solution for sustainable transport and secondary packaging in paper. Products with or without a tray are wrapped in a tight paper sleeve made from uncoated kraft paper, with overlap and optimised hot-melt gluing. This creates stable, transport-ready bundles that ensure product safety throughout the entire supply chain – without plastic film or unnecessary cardboard use.
FMCG manufacturers and other users benefit from this resource-saving alternative to heat-based shrink wrapping processes and extensive cardboard systems, particularly through reduced material and energy consumption. Optionally integrated components such as printing, labelling or automation systems also enable individual adaptation to customer-specific requirements.
For ideal interaction between paper and machine technology, the paper S sleeve wrapper has been specially optimised for Ad/Vantage StretchWrap kraft paper from paper manufacturer Mondi, weighing only 70 g/m². With minimal material use, this packaging solution provides the mechanical strength required for transport and logistics – without compromising operational efficiency.
| Product infeed | manual as standalone/automatic in-line |
| Product Size | Length in the running direction of the products Length: max. 400 mm Width: max. 600 mm Height: 70 - 250 mm (optional 300 mm) |
| Paper | uncoated from approx. 70 to 110 g/m2 |
| Capacity | approx. 1,300 cycles/h |
| Versions | paper-banded with a 50 mm overlap at the rear in the running direction and hot-melt gluing |
| Downloads |

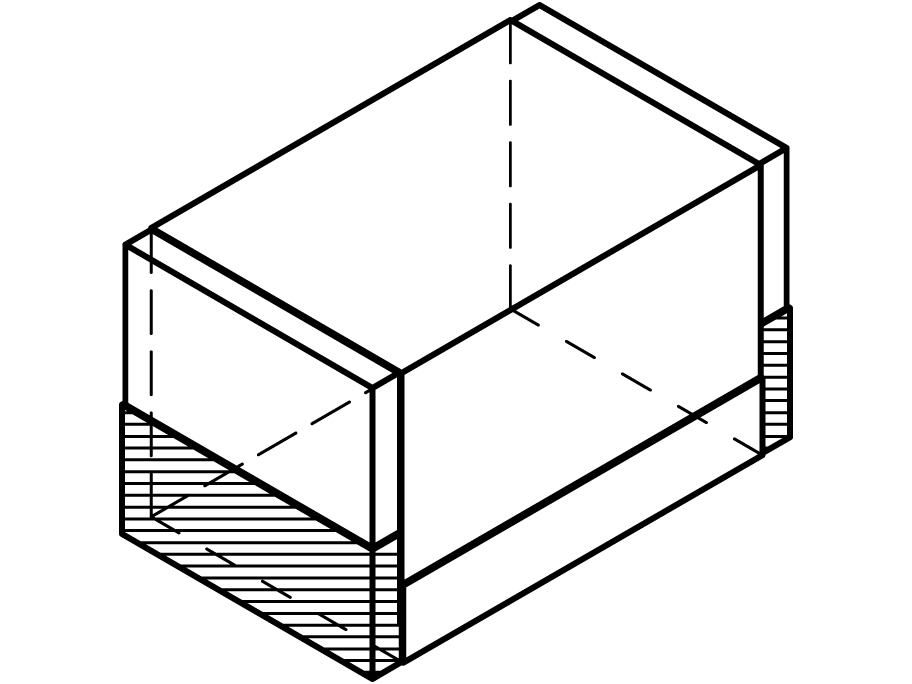

The sleeve wrapper paper S wraps products with or without a tray in kraft paper with overlap and hot-melt gluing
Products with or without a tray are wrapped with a tight paper sleeve using Mondi's uncoated lightweight Ad/Vantage StretchWrap kraft paper of 70 g/m².
Products with or without a tray are wrapped with a tight paper sleeve using Mondi's uncoated lightweight Ad/Vantage StretchWrap kraft paper of 70 g/m².
